First,about Netsol MRAM memory

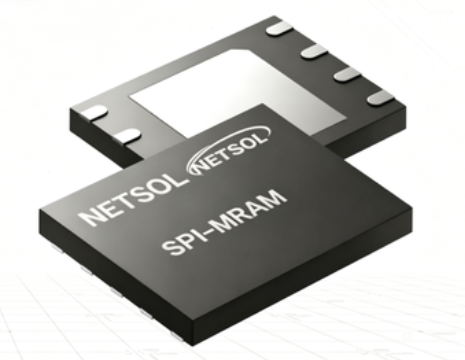

As a Korean semiconductor company with more than 30 years of advanced memory IC design experience,Netsol of Yingshang Micro-Agency has long been focusing on providing high-stability storage products for mission-critical systems.MRAM memory(magnetoresistive random access memory)introduced by Netsol combines the characteristics of high-speed writing,high durability,low power consumption and radiation resistance,and is especially suitable for application environments that require high data integrity.As a representative model of Netsol MRAM product line,S3A1004R0M is designed with serial peripheral interface(SPI)and supports 1M bit storage capacity,which shows excellent adaptability in industrial automation,network equipment and medical instruments.
Second,characteristics of Netsol mram memory S3A1004R0M
1.Working conditions and packaging options
Netsol mram memory S3A1004R0M supports single power supply from 1.71V to 1.98V,which meets the design requirements of low-voltage systems.Its working temperature range covers-40℃to 105℃,which can meet the requirements of continuous operation in industrial harsh environment.The package form provides 8WSON,8SOP,16SOP and 24FBGA,which is convenient for different PCB layout designs.
2.Interface and read-write performance
Netsol mram memory is compatible with SDR and DDR serial interface modes,and supports single-wire,double-wire and four-wire SPI communication.In SDR mode,the clock frequency can reach 108MHz；;In DDR mode,it is 54MHz.It supports serial peripheral interface of mode 0 and has XIP(On-Chip Execution)function,which can realize efficient data reading and writing operations.
3.data persistence and reliability
S3A1004R0M is outstanding in data retention:data can be stored for 20 years at 85℃and 10 years at 105℃.The endurance of writing Netsol mram memory reaches 10 times,and the endurance of reading is unlimited,and the data integrity can be guaranteed without external ECC(error correction code),which significantly reduces the extra overhead of system design.
4.Multi-level data protection
Netsol mram memory products have built-in multiple data protection mechanisms,including hardware write protection through WP pin and block locking protection function,which can effectively prevent key data from being rewritten by mistake.In addition,its nonvolatile status and configuration registers can ensure that system parameters are not lost after power failure.
5.Extended storage and low power design
S3A1004R0M provides an extended nonvolatile area of 256 bytes,and supports user read and write protection,which can be used to store system configuration information.At the same time,mram memory supports deep power-off mode,which helps to reduce the overall energy consumption of portable or low-power devices.
6.standard reset compatibility
The product supports JEDEC standard reset function,which is convenient for system-level initialization management and improves the compatibility with mainstream controller platforms.
Third,typical application scenarios of Netsol mram memory
With its high durability,wide temperature range and radiation resistance,S3A1004R0M MRAM memory is suitable for the following fields:
①industrial automation:data caching and logging in PLC and motion controller.
②Network equipment:configuration parameter storage in routers and switches.
?、跰edical equipment:real-time data processing in portable monitors and ultrasonic equipment.
?、躀nstrumentation:data temporary storage and calibration information storage in high-precision measuring equipment.
